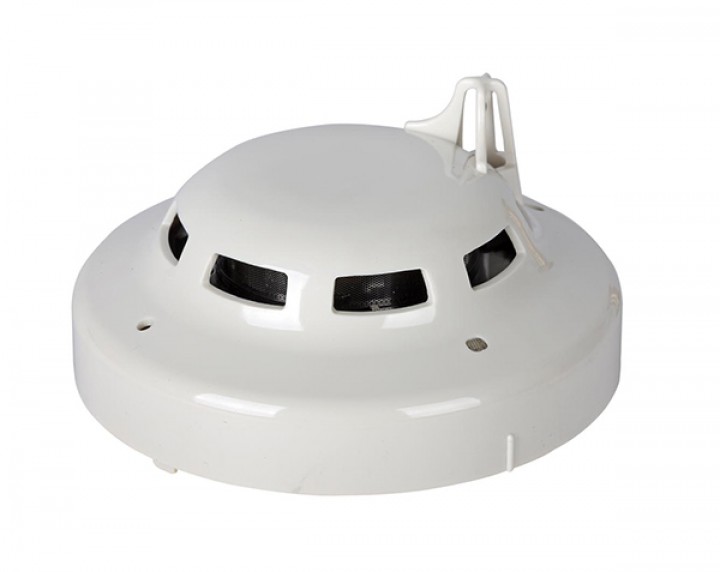

Multi-criteria Detector – LE-SLR-24H

Multi-criteria Detector – LE-SLR-24H

• Low profile, 2.2″ high (with base)
• 2 or 4 wire base compatibility, relay bases available
• 135°F Fixed Temperature heat sensor (Latching)
• Heat sensor protected by a built-in guard
• Highly stable operation, RF/Transient protection
• Low standby current, 45μA at 24VDC
• Two built-in power/sensitivity supervision/alarm LED’s
• Non-directional smoke chamber
• Vandal resistant security locking feature
• Removable smoke labyrinth for cleaning or replacement
• Automatic Sensitivity window verification function meets outlined requirements in NFPA 72, Chapter 2 & 7, Inspection, Testing and Maintenance
