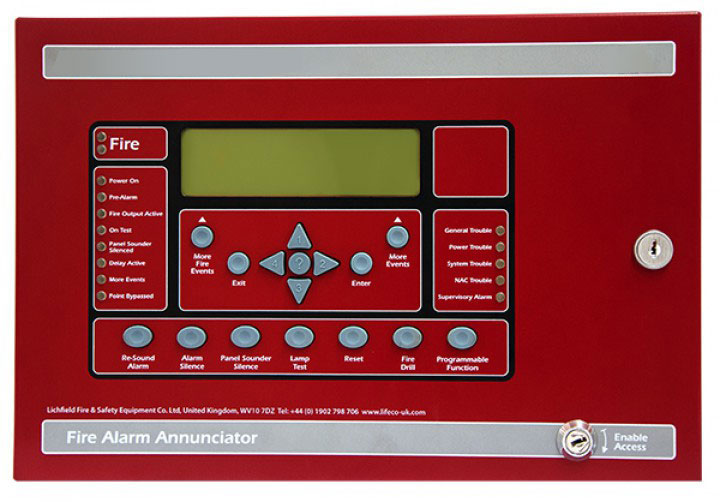

LE-FN-LCD-S Serial annunciator

LE-FN-LCD-S Serial annunciator

• UL 864 9th edition Listed
• Large 320 character liquid crystal display (8 line x 40 character) allows viewing of system status
• LED indicators for Fire, Supervisory Alarm, Pre-Alarm, Fire Output Active, AC Power On, On Test, Panel Sounder Silenced, Delay Active, More Events, Point Bypassed, General Trouble, Power Trouble, System Trouble & NAC Trouble
• Same controls as the LIFECO EAGLE fire panel (Reset, Panel Sounder Silence, Lamp Test, Alarm Silence, Re-sound Alarm, Fire Drill, Programmable Function, More Events, More Fire Events, Enter & Exit)
• Up to 15 LE-FN-LCD-S serial annunicators may be connected to a FireNET control panel or network annunciator
• Resides on the FireNET slave RS-485 line
• Local piezo sounder for event notification
• Supports user codes & firefighter key to enable access & controls
• Powered by LIFECO EAGLE Aux 24VDC or UL fire listed Aux. 24VDC supply
• Available in red or charcoal, and can be surface or flush mounted
• Built-in help & alarm information screens
• Fire drill function
