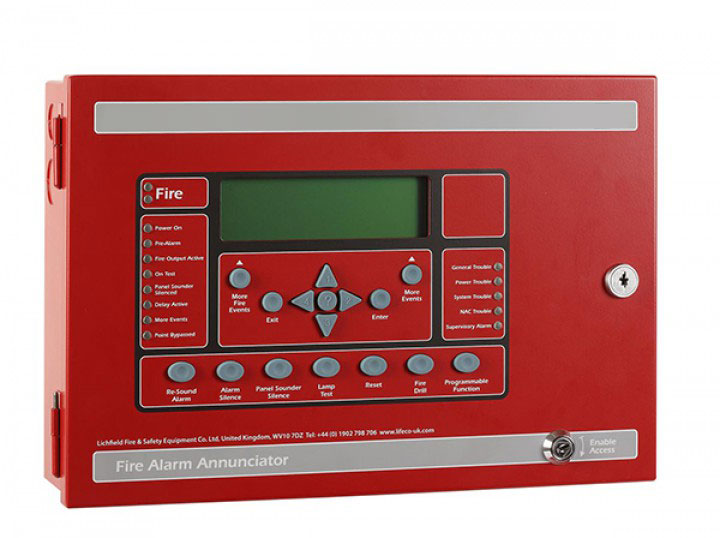

LE-FN-LCD-N Network Annunciator

LE-FN-LCD-N Network Annunciator

• UL 864 9th edition Listed
• 320 character liquid crystal display (8 line x 40 character)
• LED indicators for Fire, Supervisory Alarm, Pre-Alarm, Fire Output Active, Power On, On Test, Panel Sounder Silenced, Delay Active, More Events, Point Bypassed, General Trouble, Power Trouble, System Trouble & NAC Trouble
• Dual RS485 ports for primary fire network
• RS485 slave bus for expansion – up to 32 LE-FN-4127-IO boards or up to 15 LE-FN-LCD-S serial annunciators and up to17 LE-FN-4127-IO boards
• 2 built-in RS-232 interfaces for programming via a PC and serial printer interface
• 4 on board programmable Form C relays rated at 1 Amp at 30VDC (Fire, Supervisory, Trouble & Auxiliary)
• Same controls as the LIFECO EAGLE fire panel (Reset, Panel Sounder Silence, Lamp Test, Alarm Silence, Re-sound Alarm, Fire Drill, Programmable Function, More Events, and More Fire Events, Enter & Exit)
• Local piezo sounder for event notification
• Supports user codes & firefighter key to enable access & controls
• Powered by LIFECO EAGLE Aux 24VDC or UL fire listed Aux. 24VDC supply
• Available in red or charcoal, and can be surface or flush mounted (using trim ring)
• True network annunciator, any or all panels can be routed to the LE-FN-LCD-N. In addition, each event category can be individually routed to the LE-FN-LCD-N
• Up to (64) LIFECO EAGLE panels & LE-FN-LCD-N’s can be networked together in any combination
• 500mA of auxiliary power available rated at 24VDC
• Auto-learn feature
• Built-in help & alarm information screens
• Fire drill function
• Each LE-FN-LCD-N is completely independent
• The LE-FN-LCD-N can be configured to remote reset, silence, resound, any or all panels on the network in any combination
