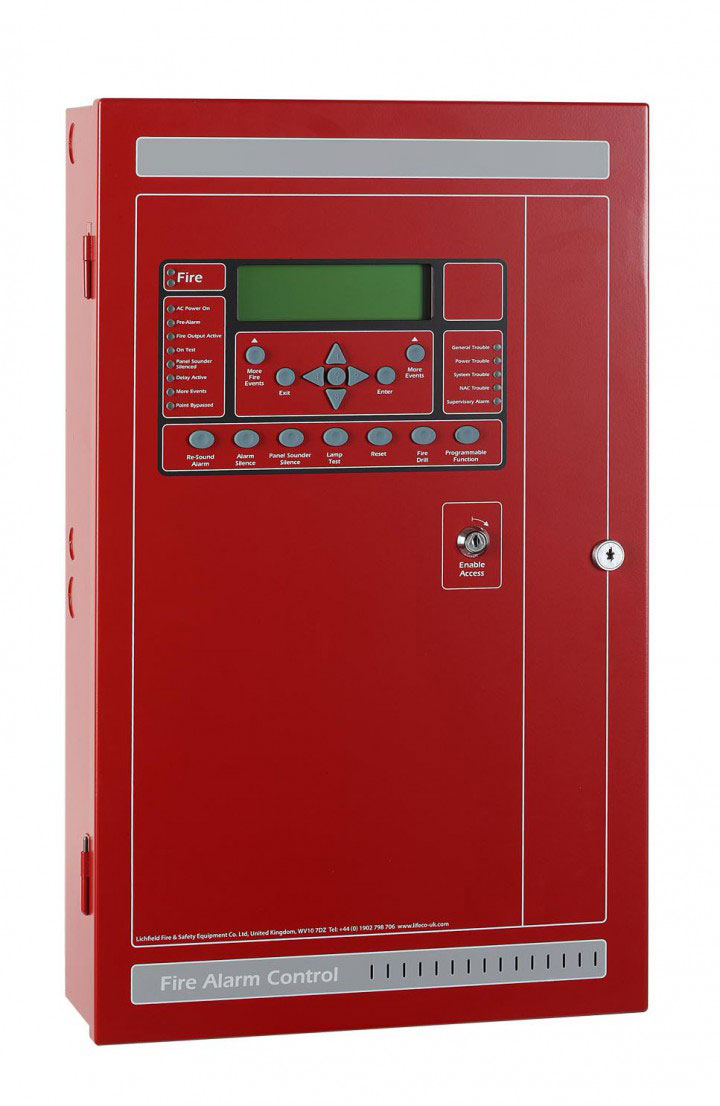

LE-FN-4127 Fire control panel

LE-FN-4127 Fire control panel

• UL 864 9th edition Listed
• 2 loop (LE-FN-2127 Series) or 4 loop (LE-FN-4127 Series) versions
• Analog design using LIFECO’s advanced DCP protocol for fast and robust communication
• Up to 127 sensors & modules, plus 127 analog sounder bases, for a total of 254 points possible per loop
• Uses standard wire, no shielded or twisted pair required on SLC loops
• Supports Class B (style 4) and Class A (style 6 or 7) SLC loops
• 4 on board Class B (style Y) NAC circuits rated at 2.5 Amps each
• Programmable sensitivity levels per device & automatic day/night sensitivity modes
• Automatic daily calibration & drift compensation routine
• Large 8-line x 40-character LCD display (320 char.)
• Dual RS-485 bus for panel network
• 2 built-in RS-232 interfaces for programming via a PC and serial printer interface
• 5 on board programmable Form C relays rated at 1 amp at 30VDC (Fire1, Fire2, trouble, supervisory, aux.)
• 500mA of auxiliary power available rated at 24 VDC
• Loop Explorer Windows® configuration utility
• 500 network wide software zones
• Network Capability of up to 64 panels
• RS485 slave bus for expansion – up to 32 LE-FN-4127-IO boards or up to 15 LE- FN-LCD-S serial annunciators and up to 17 LE-FN-4127-IO boards
• Auto-learn feature
• Fire Drill test function
• Walk Test function
• Alarm Verification feature
• Operates on 120VAC or 240VAC input voltage
• Powerful & versatile Cause & Effect programming (up to 500 maximum, network wide) including:
• Cause & Effect action
• Disable function configuration
• Test mode configuration
