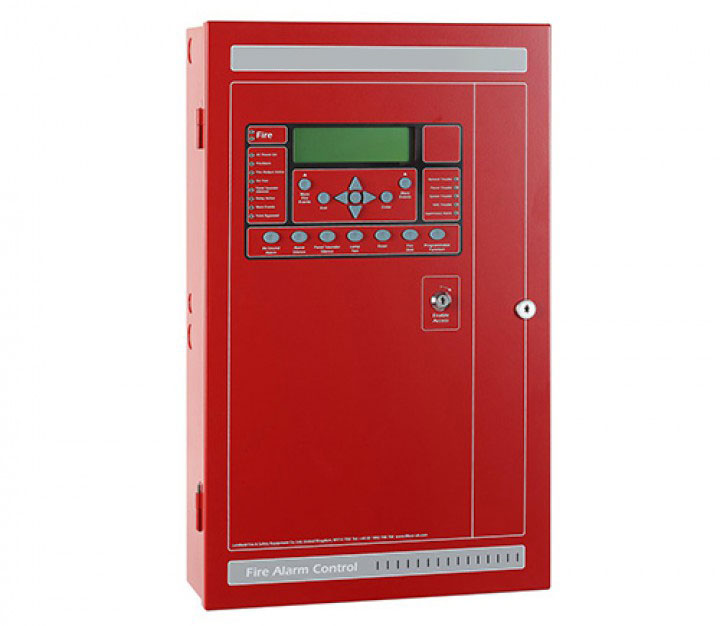

Fire control panel – LE-FN-2127
Fire control panel – LE-FN-2127
UL 864 9th edition Listed
2 loop (LE-FN-2127 Series) or 4 loop (LE-FN-4127 Series) versions
Analog design using LIFECO’s advanced DCP protocol for fast and robust communication
Up to 127 sensors & modules, plus 127 analog sounder bases, for a total of 254 points possible per loop
Uses standard wire, no shielded or twisted pair required on SLC loops
Supports Class B (style 4) and Class A (style 6 or 7) SLC loops
4 on board Class B (style Y) NAC circuits rated at 2.5 Amps each
Programmable sensitivity levels per device & automatic day/night sensitivity modes
Automatic daily calibration & drift compensation routine
Large 8-line x 40-character LCD display (320 char.)
Dual RS-485 bus for panel network
2 built-in RS-232 interfaces for programming via a PC and serial printer interface
5 on board programmable Form C relays rated at 1 amp at 30VDC (Fire1, Fire2, trouble, supervisory, aux.)
500mA of auxiliary power available rated at 24 VDC
Loop Explorer Windows® configuration utility
500 network wide software zones
Network Capability of up to 64 panels
RS485 slave bus for expansion – up to 32 LE-FN-4127-IO boards or up to 15 LE- FN-LCD-S serial annunciators and up to 17 LE-FN-4127-IO boards
Auto-learn feature
Fire Drill test function
Walk Test function
Alarm Verification feature
Operates on 120VAC or 240VAC input voltage
Powerful & versatile Cause & Effect programming (up to 500 maximum, network wide) including:
Cause & Effect action
Disable function configuration
Test mode configuration
