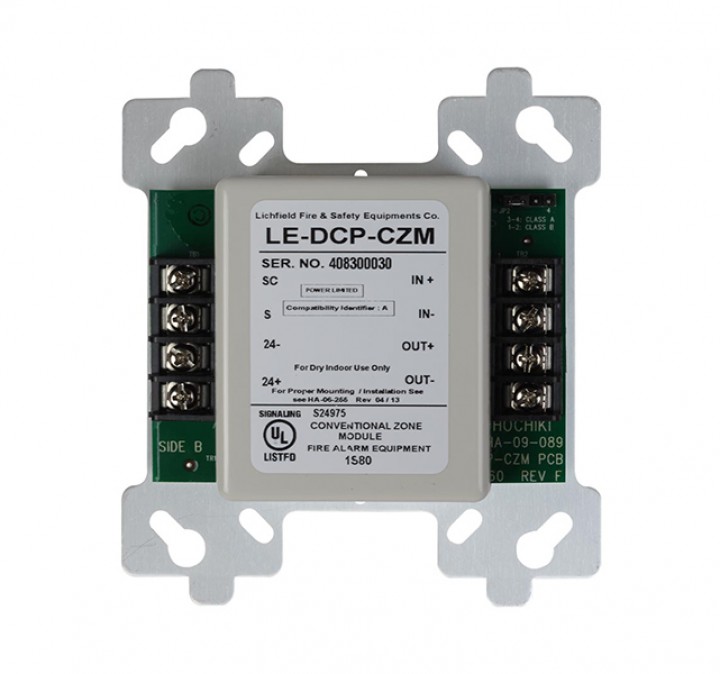

Conventional Zone Module – LE-DCP-CZM

Conventional Zone Module – LE-DCP-CZM

• UL 864 9th Edition Listed
• Provides an address point for a zone of up to 25 conventional smoke detectors
• Blinks green when polled. Latched on red (controlled by panel) when activated
• Device address can be programmed with a handheld programmer. Device address ranges from 1 to 127
• Compatible with Class B and Class A wiring
• Auxiliary power source provides power for the zone of detectors
• Compatible with conventional detectors, LE-SLR, LE-SIJ, LE-SLV, LE-DCD, LE-DFE series
• Compatible with TH series linear heat cables from Proline Protection Systems
