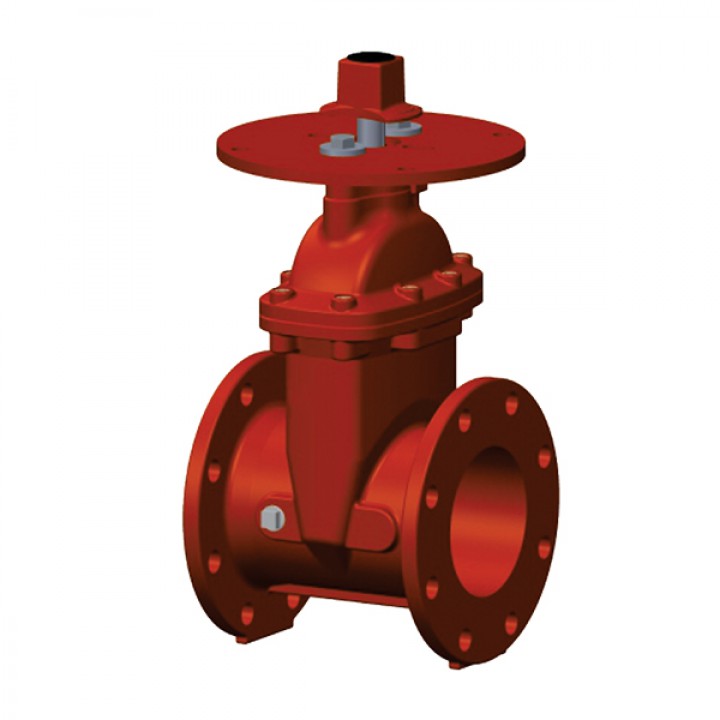

2.5” – 12” Size, Flanged – 3288-XXX-FLF

2.5” – 12” Size, Flanged – 3288-XXX-FLF

• Complies with AWWA C515 Standard
• Non-rising stem
• 4″ to 12″ Size provided with indicator post plate, other sizes – plate provided only when specified at time of order
• Triple O-rings stem seal
• NPT plug on body
• Flanges to ANSI B16. 1 Class124 (Other flange type available upon request)
• UL Listed & FM Approved
• 300PSI Working pressure ( 200PSI (3288-200-FLF) and 250PSI (3288-250-FLF) available upon request.)
• -10°C to 82°C Working temperature
• Corrosion protection – Fusion bonded epoxy coated interior and exterior to AWWA C550 standard
